2D Design and Drawings

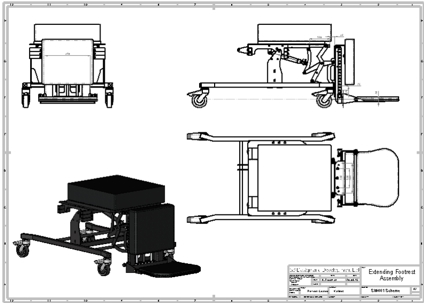

A picture tells a thousand words and in Engineering terms a 2D drawing is a pre-requisite for many downstream activities including Quality control and Inspection in most organisations.

It holds all the key measurement details to ensure the product meets the required standards of dimensions, tolerances and detailed views of component or assembly.

Whether it's a "fag packet" sketch that needs converting to an industry standard format or a brand new IDEA we'll create a drawing format to suit your business and embed your corporate logo within.

S3 Design uses Solidworks Premium 2015 and with the support of our Value Added Reseller-SolidSolutions, we will always provide you, our valued client, with the latest CAD applications and solutions.

Let S3 Design provide you with the solution.
